All ingenious software and fiber optic spectrometers or photometers are totally useless, if the PROBE in process fails!
Choosing the "right" probe technology is important, how long and how
reliable a spectroscopic or photometric process control system will work!

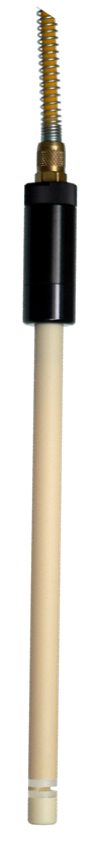

Some of these unique seal-less Sapphir
e-
alumina ceramic probes did work more than
20
years continuously without any leakage and instability!
Daily batch with temperature up and down, changing solvents - no problem!
Less or no downtime was the advantage.
For support or rare service request please use the email.
Many thanks to all early users of the mid nineties.
With their pioneering spirit they did show the extraordinary potential
of this unique probe technology!
History:
* idea and first request 1990
* 1993 first probe with collimated beams
in Ø 12mm design like a pH-probe
(still metal made)
* December 1993 first probe prototypes
* 1994 first applications
* November 1995 production capabilty
* idea and first request 1990
* 1993 first probe with collimated beams
in Ø 12mm design like a pH-probe
(still metal made)
* December 1993 first probe prototypes
* 1994 first applications
* November 1995 production capabilty
Types of Probes
Achieved Rating
Installation
Spectrometers
Conductivity
FAQ
Imprint
Data
Protection
Protection

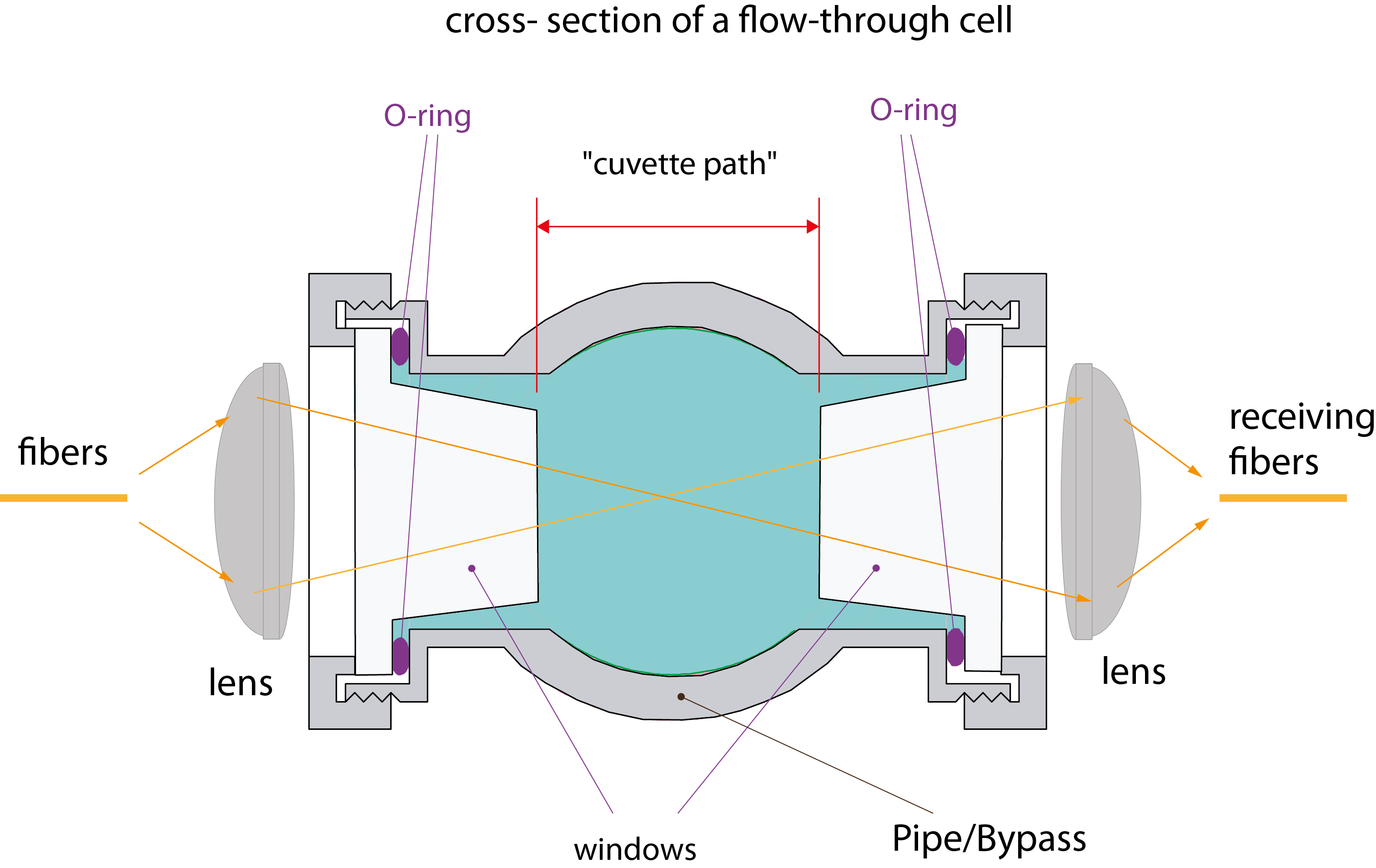

Why a "probe" instead of a crossline flow through cell?
A probe, independent from vendor and technology, decouples the path basic transmission (baseline, reference) from the mechanics of pipelines and tiny instabilities after "opening and closing" the path at cleaning/referencing causing tilt of the spectra. The reproducibility of path length is not the key problem at advanced spectroscopic technologies!
Compared to simple peak-baseline ratios at photometric measurements, some methods using much more (dozen, hundreds ...) data points of a spectrum. This "band shape" based calculations (for example chemometrics) require extreme stable unchangeable optical benches at the path.
This path length stability is easier to achieve with probes than with any kind of cells and in some application like in vessels or reactors the "probes" are without any alternative.
Compared to simple peak-baseline ratios at photometric measurements, some methods using much more (dozen, hundreds ...) data points of a spectrum. This "band shape" based calculations (for example chemometrics) require extreme stable unchangeable optical benches at the path.
This path length stability is easier to achieve with probes than with any kind of cells and in some application like in vessels or reactors the "probes" are without any alternative.
