Installation possibilities
History:
* idea and first request 1990
* 1993 first probe with collimated beams
in Ø 12mm design like a pH-probe
(still metal made)
* December 1993 first probe prototypes
* 1994 first applications
* November 1995 production capabilty
* idea and first request 1990
* 1993 first probe with collimated beams
in Ø 12mm design like a pH-probe
(still metal made)
* December 1993 first probe prototypes
* 1994 first applications
* November 1995 production capabilty
Types of Probes
Achieved Rating
Installation
Spectrometers
Conductivity
FAQ
Imprint
Data
Protection
Protection
Sanitary fittings
for Biotechnology, Pharma and food processing.
Withstand SIP and CIP-procedures.
Small standard flanges
DN25 with regular clamp fittings like Swagelok™ or Gyrolok™(HOKE) fittings.

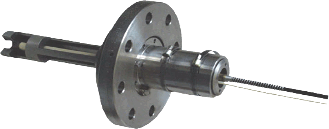

Heavy fitting for resin synthesis reactors
DN100 and larger
with Sapphire-alumina ceramic probe inside!
Rugged cover.

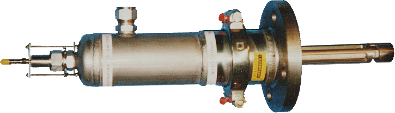

Inspray window cleaning
attached to regular flanges for reactors and vessels - better than
RETRACTION
Can be also used at
temperatures higher 300°C
"Ceramic Flange"
for using
Sapphire-alumina ceramic probes in coated (enamel glazed, PTFE, PVDF) reactors, vessels or pipelines
Probe & double walled cell
for pipes smaller than ¾" - preferred in refineries
Temperature stabilisation with heat transfer fluid or water
By sliding the probe through the cell a stable and safe service position gives excellent access to the Sapphire windows
Smallest sleeve NS14/15 - access to small vials
and glass apparatus
in laboratory
and during
testing
High temperature batch operation 350°C daily for more than 15 years!
High safety systems
containing Sapphire-ceramic alumina
probes
Ethylenoxide & chemical warfare agents
Extruder -
Polymer Blending
